WH2 Whole House Filtration System - CHLORINE

Whole House Chlorine Filter

This two stage whole house water filtration system removes chlorine and sediment from all city water entering your home. It is configured for use with municipally treated tap water which has been disinfected with chlorine.

This whole home water filter system is installed immediately after the water supply enters your home and before it reaches your hot water heater.

It removes chlorine from all water routed through it before reaching hot and cold taps, showers and baths. This eliminates the presence of chlorine in ambient air which can be particularly obnoxious in bathrooms where hot water is used in an enclosed space.

Quiet, compact, efficient, inexpensive, simple to maintain. This whole home water filter does not waste water other than during the initial flush of new cartridges. Once installed, most home owners can maintain the system without the help or expense of a plumber. This cartridge-style whole house system does not require a connection to electricity or a drain.

For use with municipally treated water. Do not use with water that is micro-biologically unsafe.

Product Details

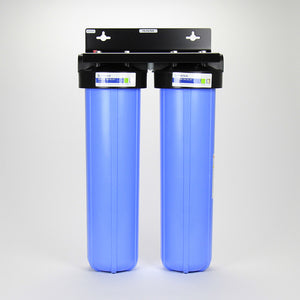

This point of entry water filtration system consists of two heavy duty canister-style housings mounted on a sturdy steel bracket. The first canister contains a dual gradient density sediment filter. The second canister contains a high performance coconut shell carbon cartridge. Materials and components are NSF-approved to Standard 42 for material requirements.

The stage one sediment cartridge is a fine dual gradient density (25/1 micron) filter for high flow rates plus great dirt holding capacity for protecting and prolonging the service life of the carbon filter, your plumbing and appliances. The life of the sediment cartridge will be determined by the quantity and characteristics of the incoming water. It should be changed when the flow rate becomes noticeably slower. This cartridge is made of spun polypropylene and is NSF tested and certified to NSF/ANSI Standard 42 for quality of materials.

The stage two carbon filter is a radial flow design which enables fast flow rates with minimal pressure drop while providing excellent chlorine and chemical reduction. It is made from granular activated coconut shell carbon that is produced by an environmentally progressive green technology. This cartridge has been NSF tested and certified to NSF/ANSI Standard 42 for quality of materials. The change-out frequency for this cartridge will be determined by the quantity and quality of the water supplied to the filtration system and should not exceed one year.

This entire whole house filtration system is configured for exceptionally low pressure drop and flow rate up to 7gpm. For circumstances requiring higher flow rates, two systems can be installed in parallel.

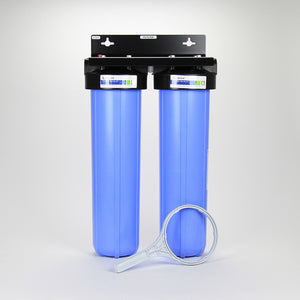

The filter system comes with the two canister housings with pressure relief button pre-mounted on the steel mounting bracket, the initial set of cartridges, a filter wrench and mounting screws.

We recommend that this whole home water filtration system be installed by a licensed plumber who can supply the appropriate size of fittings to connect it to your water supply line plus pressure gauges (recommended), water shut-off valves, a water by-pass (recommended) and any other equipment required by your local plumbing code. The filter will install on PVC and metal pipe.

The system can be wall-mounted and should be installed with at least 4 inches of clearance below the housings to allow for cartridge changes.


Features

Compact – fits in a small space with no access to drain

Heavy duty construction – durable polypropylene housing with sturdy steel mounting bracket
BPA-free polypropylene

High performance chlorine and sediment reducing cartridges specifically for urban water supply disinfected with chlorine.

Excellent cartridge service life* with exceptionally low pressure drop.

*Service life will depend on the characteristics of the incoming water.

Specs

FAQs

How do I guestimate how long before I should expect to have to change out my whole house water filter cartridges?

Water consumption calculations are typically based on 75 gallons per day per person.
An active four person household might consume 300 gallons of water per day.
If the filter is rated at 40,000 gallons (chlorine filter), capacity would be reached after approximately 4.5 months of use. Local and onsite water quality will also influence filter service life.

Owner’s Manual

Do not use with water that is microbiologically unsafe.

Replacement Cartridges


Cartridge Changeout Instructions

Use with municipally treated water. Do not use with water that is microbiologically unsafe.
